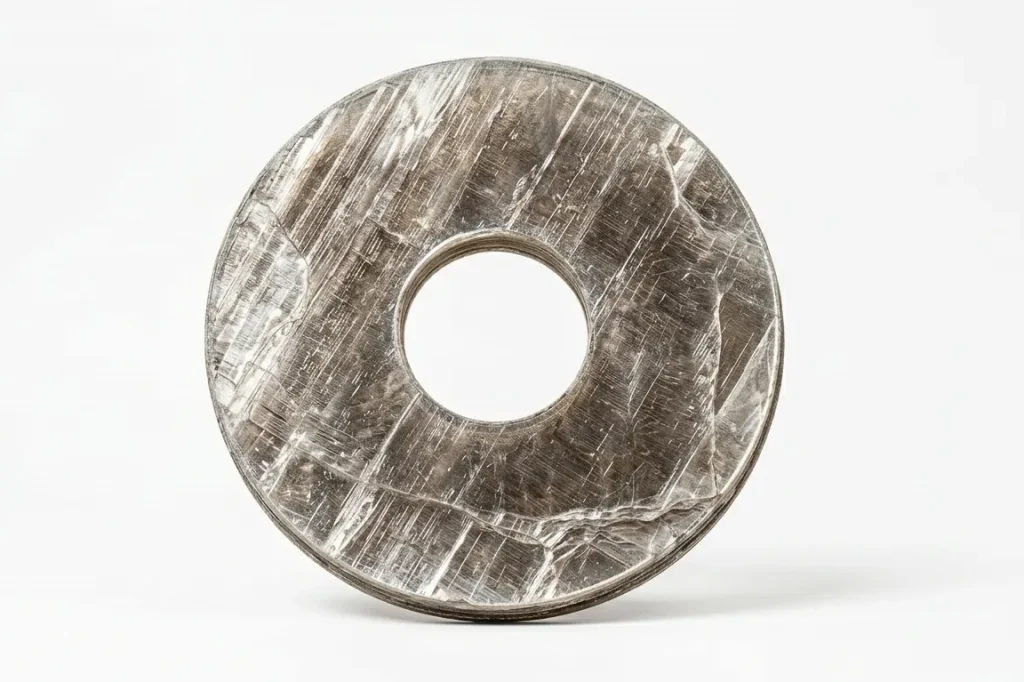

Mica Washer
A mica washer is a precision-engineered insulating component stamped or die-cut from high-quality natural or built-up mica sheets. These washers are prized in the electrical and electronics industries for their unique ability to provide robust mechanical support while acting as a superior thermal and electrical barrier. Because mica can withstand extreme temperatures, often exceeding 600°C to 1000°C depending on the mica type these washers are essential for isolating power transistors, heating elements, and heavy-duty industrial bolts from their chassis. Their high dielectric strength and resistance to moisture and chemicals ensure that even under intense thermal expansion and contraction, the washer maintains a reliable, non-conductive seal that prevents electrical arcing and short circuits in high-voltage environments.

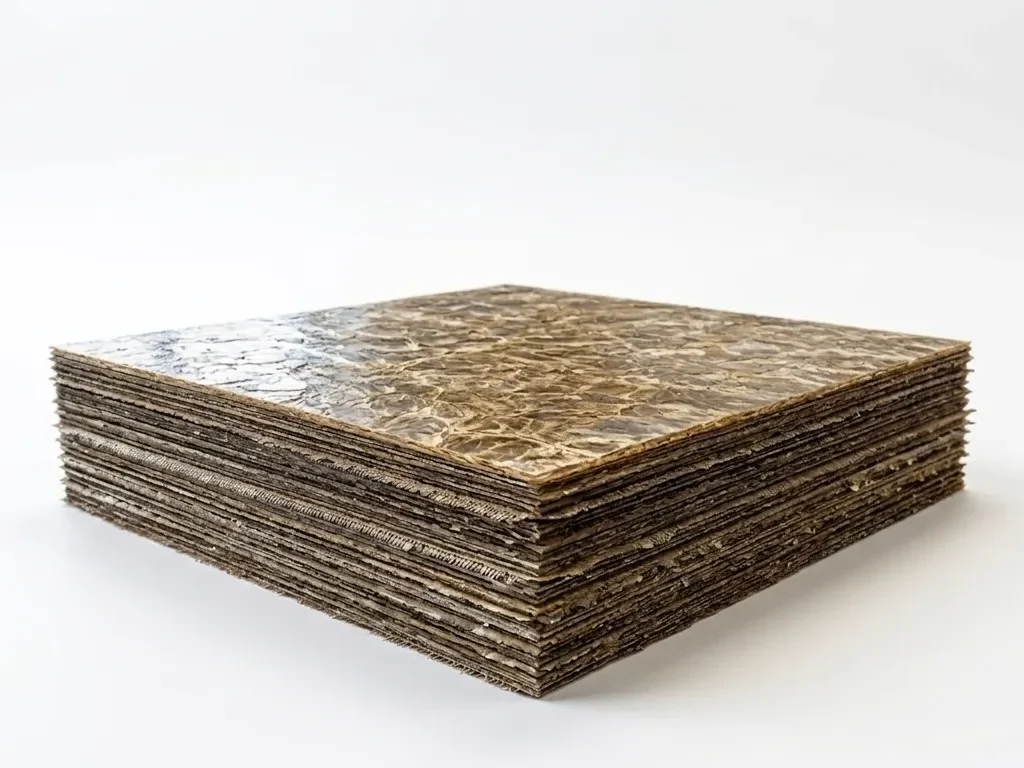

Flexible Micanite
Flexible micanite is an extremely effective insulator that consists of very thin strips of mica called splittings or of mica paper, which is bound by special flexible resins like silicone or polyester. In contrast to the rigid mica plates, flexible micanite is specifically designed to be malleable at room temperature so that it can be wrapped around various forms without fracturing. Its flexibility makes flexible micanite perfect for use as an insulator for curved objects, such as armatures of electric motors and transformers’ windings. The flexibility of the material, combined with high temperature resistance, allows flexible micanite to serve as an effective insulation in places where there is motion.

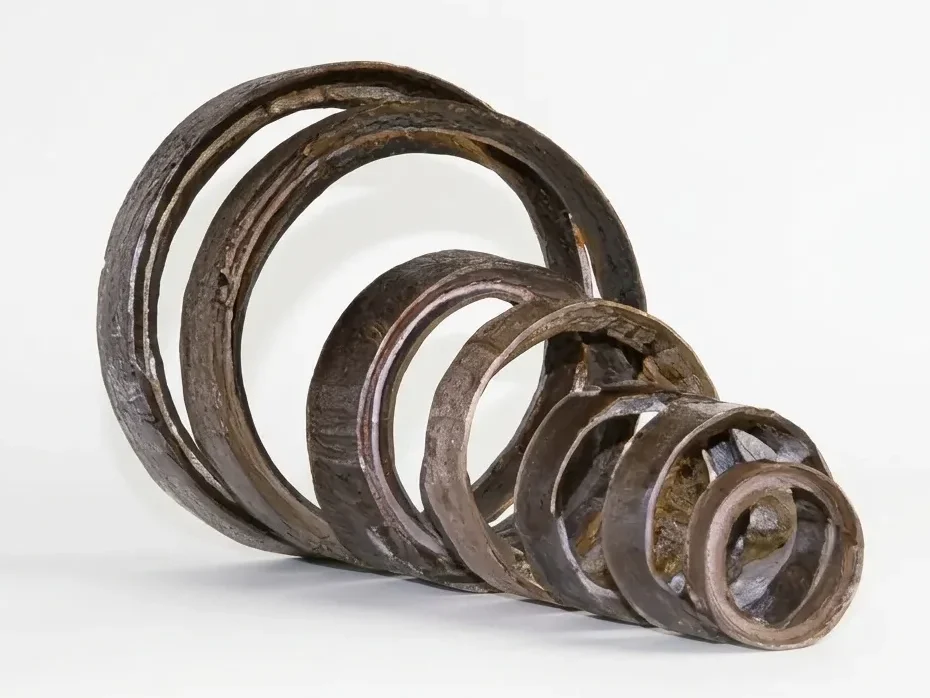

Commutator Vee Rings
Commutator vee rings (also known as V-rings) are critical insulating components used in assembly of DC motor and generator commutators. Typically fabricated from micanite a built-up material consisting of mica splittings bonded with high-temperature resins like epoxy or silicone these rings are molded into a precise “V” shape to fit the ends of the commutator segment assembly. Their primary function is to provide high-voltage insulation between the copper segments and the steel structural members of the shaft, while simultaneously exerting the massive mechanical clamping force required to hold the segments in place during high-speed rotation. Because they must withstand intense centrifugal forces, thermal expansion, and constant electrical stress without cracking or losing their shape, mica-based vee rings are the industry standard for ensuring the long-term structural and electrical integrity of heavy-duty industrial motors.

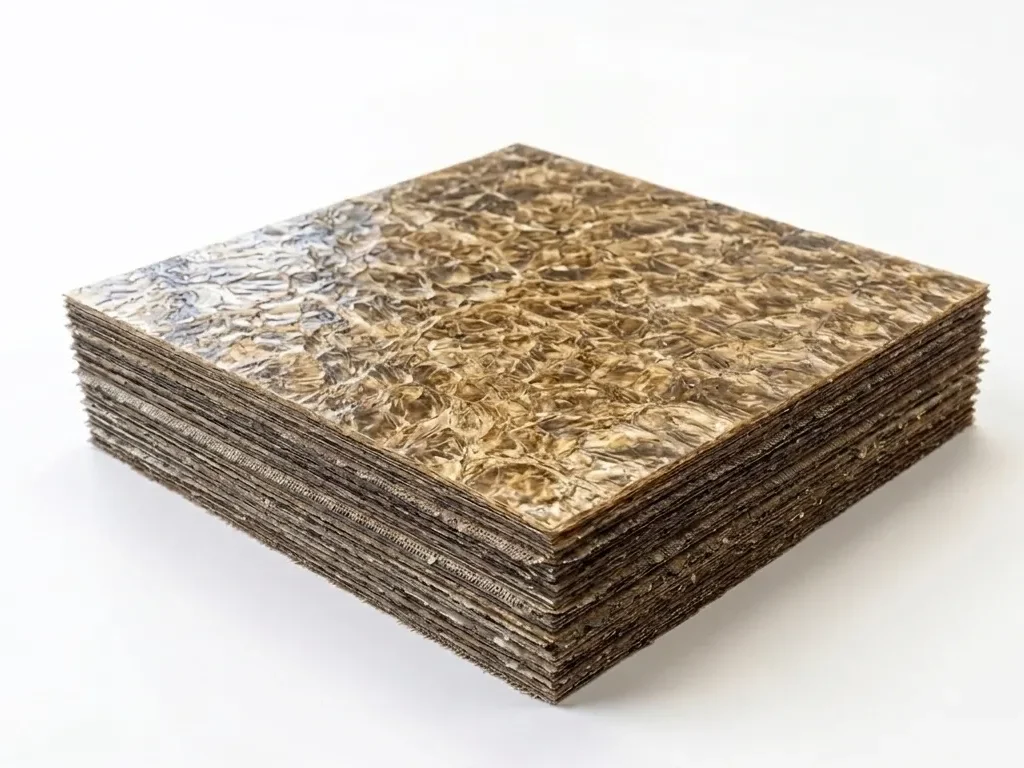

Heat Resisting Micanite
High-Temperature Heat Resisting Micanite Board are manufactured using high-purity mica flakes or mica paper that has been laminated together by a highly temperature-resistant resin such as silicone. It has been designed for sustained exposure to heat while still retaining sufficient mechanical stability and dielectric strength. The product is capable of withstanding temperatures of up to 500°C and 1000°C, depending on the particular formulation. As such, it serves as an essential material for the insulation of heating elements in domestic equipment, including toasters and blow-dryers, as well as industrial furnaces and circuit breakers. In contrast to ordinary plastic insulators, micanite is non-toxic and will not melt under fire.
